This article examines the complications of installing instruments in the cramped panel of a glider. Various samples of modern panels are shown.

Design Tool

Schleicher provide a design tool to  customize your instrument panel. You can download Word files here to get a first impression of the possible arrangement of the instruments. They recommend that you first save the files on your computer by right-clicking and then arrange the instruments. In some cases, scale drawings of the instrument panels are also available as PDF files. They have templates for most panels in their fleet of gliders.

Some Sample Panels

ASH31mi ideas

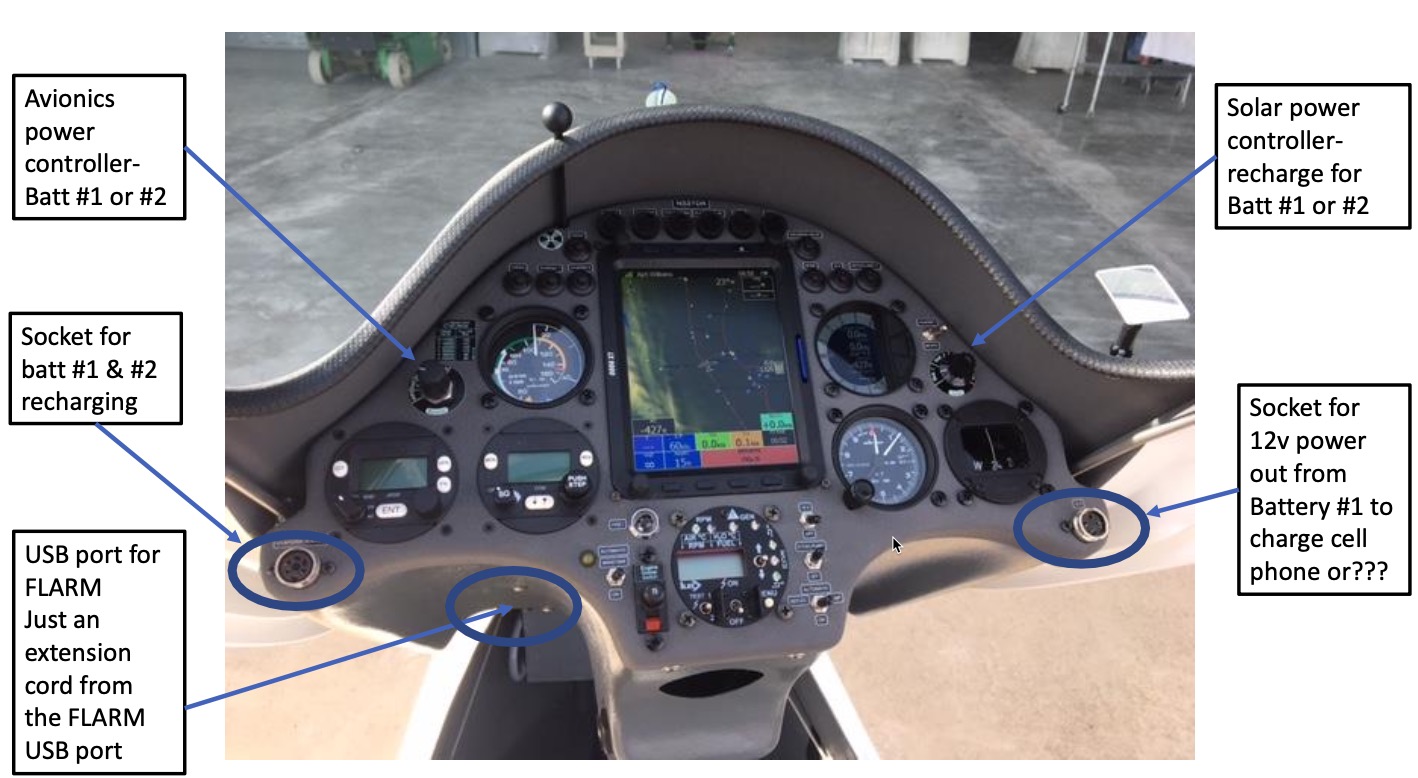

7DR Panel

BC Panel

bc panel1

An example of the output of Schleicher Design Tool

instrumentsY

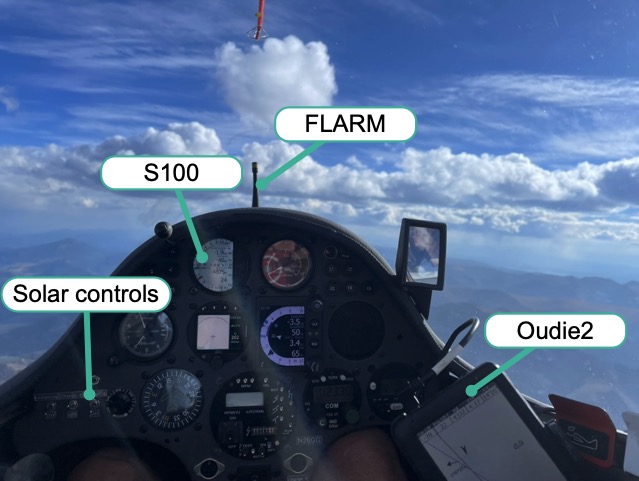

The S100 above is powering the FLARM and the Oudie2
